Description

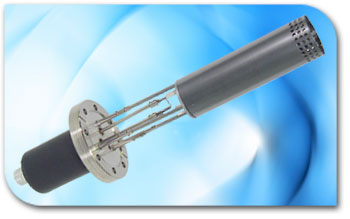

SVT Associates’ CL Series intentionally creates a much cooler zone at the crucible lip, particularly beneficial when depositing Aluminum. The cold-lip prevents Aluminum from wetting the crucible and damaging the cell during evaporation. Models are available for mounting on a 2.75″ or larger CF Flange. SVT Associates also offers a cold lip source with water cooling in the lip region for use in an UHV Ammonia environment (4.50″ or larger CF flange). Integrate shutter is also optional for 4.50″ CF flange or larger.
| Specifications | |
| Temperature Range | 0 °C – 1,400 °C |
| Power Requirement | 600 W or 1kW |
| Temperature Stability | +/- 0.1 °C |
| Temperature Reproducibility | +/- 0.1 °C |
| Thermocouple Type | Type C |
| Crucible Sizes* | 6 cc, 10 cc, 16 cc, 20 cc, 22 cc, 40 cc, 50 cc, 60 cc, 80 cc, 85 cc Crucibles have tapered wall for best coverage. |
| Crucible Materials* | PBN or Aluminum Oxide |
| Standard in Vacuum Length* | 12.0″ |
| Mounting Flange | 2.75″, 4.50″ or 6.0″ OD – CF |
| Electrical Connectors | Filament: Amphenol Circular T/C: Omega Submini |
| *Other sizes, materials, and lengths are available, contact SVT Associates for details. | |
| SVTA-CL-(Crucible Size)-(Flange Size) | |||
| Flange Size | 2.75″ | 4.50″ | 6.00″ |
| Crucible Size | 6 cc | 16 cc | 16 cc |
| 10 cc | 20 cc | 20 cc | |
| 16 cc | 22 cc | 22 cc | |
| 20 cc | 40 cc | 40 cc | |
| 22 cc | 50 cc | 50 cc | |
| 40 cc | 60 cc | 60 cc | |
| 80 cc | 80 cc | ||
| 85 cc | 85 cc | ||
| Larger sizes available for the 6.00″ flange size, contact SVT Associates for details. | |||
